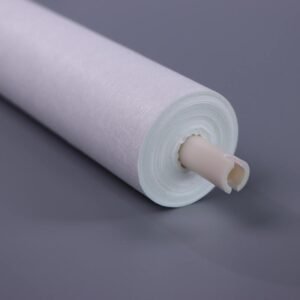

SMT Stencil Cleaning Roll Wiper, Nonwoven 100% Polypropylene

  • 100% Polypropylene
  • Designed for automatic SMT stencil cleaning
  • Compatible with various SMT printing machines
  • Effective removal of solder paste, red glue, and residues
  • High absorbency for water and cleaning solutions
  • Strong tensile strength and good flexibility
  • Low-lint
  • Available in different roll widths and lengths,  custom core length, ID, and OD
SKU 1106030135 Categories , ,

SMT Stencil Cleaning Roll Wiper, Nonwoven 100% Polypropylene

SMT Stencil Wiper Rolls are designed for automatic cleaning of SMT printing machine stencils, effectively removing excess solder paste, red glue, and other residues from stencils and circuit boards. Made from 100% Polypropylene material with a dual-layer structure, the wiper combines high absorbency, strong tensile strength, and excellent cleaning performance. Roll width, length, core dimensions, and other specifications can be customized to fit different SMT printing machines.

Material Options

  • 55% Cellulose / 45% Polyester
  • Polyester / Nylon
  • 100% PP

Applications

  • SMT stencil cleaning
  • Solder paste removal
  • Red glue removal
  • PCB printing machine cleaning
  • Automatic roll-to-roll wiping systems

Compatible with major SMT printing machine brands

  • GKG
  • EKRA
  • DEK
  • MPM
  • Desen
  • MINAMI
  • YAMAHA
  • Hitachi
  • Panasonic
  • JUKI
  • FUJI

Contact us for TDS, test reports, and certifications.

Weight 50 gsm
Material 100% Polypropylene Nonwoven
Core type PVC plastic core
Wiper length 10m
Sorbency in water 150 mL/m²
  • Buy More, Save More! FREE SAMPLE!
  • Contact us for volume discount information and Customized Products.
  • Delivery (Days)  ~5-20 days
Printing Machine Core length(mm)× Wiper Width(mm) x Wiper length(m) Core ID (mm) Core Type End Opening
GKG 410 × 400 × 10 20 PVC plastic core Flat Ends
460 × 380 × 10 20 PVC plastic core Cross-Shaped Openings at Both Ends, 3.06 mm Wide
550 × 500 × 15 20 PVC plastic core Straight Slots at Both Ends, H 5 mm × W 4 mm
EKRA SERIO4000 500 × 380 × 10 13.5 PVC plastic core Straight Slots at Both Ends
DEK 530 × 520 × 10 20 PVC plastic core Straight Slots at Both Ends, 3 × 6 mm
530 × 500 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 450 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 400 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 350 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 300 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 280 × 10 20 PVC plastic core Straight Slots at Both Ends
530 × 240 × 10 20 PVC plastic core Straight Slots at Both Ends
MPM 455 × 450 × 10 19.5 PVC plastic core Straight Slots at Both Ends, 12 Internal Protruding Grooves
455 × 380 × 10 19.5 PVC plastic core Straight Slots at Both Ends, 12 Internal Protruding Grooves
455 × 300 × 10 19.5 PVC plastic core Straight Slots at Both Ends, 12 Internal Protruding Grooves
Desen 410 × 300 × 10 20 PVC plastic core Straight Slots at Both Ends
MINAMI 290 × 270 × 10 8 PVC plastic core Straight Slots at Both Ends, Slot Depth / Width: 6 × 3 mm
290 × 240 × 10 8 PVC plastic core Straight Slots at Both Ends, Slot Depth / Width: 6 × 3 mm
YAMAHA 422 × 420 × 10 25.4 Paper core Flat Ends
422 × 400 × 10 25.4 Paper core Flat Ends
Hitachi 360 × 350 × 10 25 Paper core Flat Ends
360 × 300 × 10 30 Paper core Flat Ends
260 × 250 × 10 30 Paper core Flat Ends
280 × 250 × 10 38 Paper core Flat Ends
Panasonic 480 × 450 × 10 38 PVC plastic core Straight Slots at Both Ends
JUKI 270 × 260 × 10 38 Paper core Flat Ends
408 × 400 × 10 38 Paper core Flat Ends
FUJI 500 × 500 × 10 26 Paper core Flat Ends

Ask for Quote and Sample!
