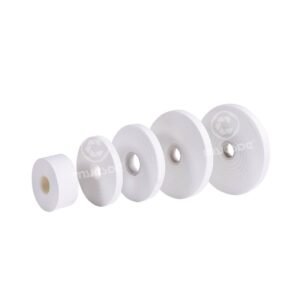

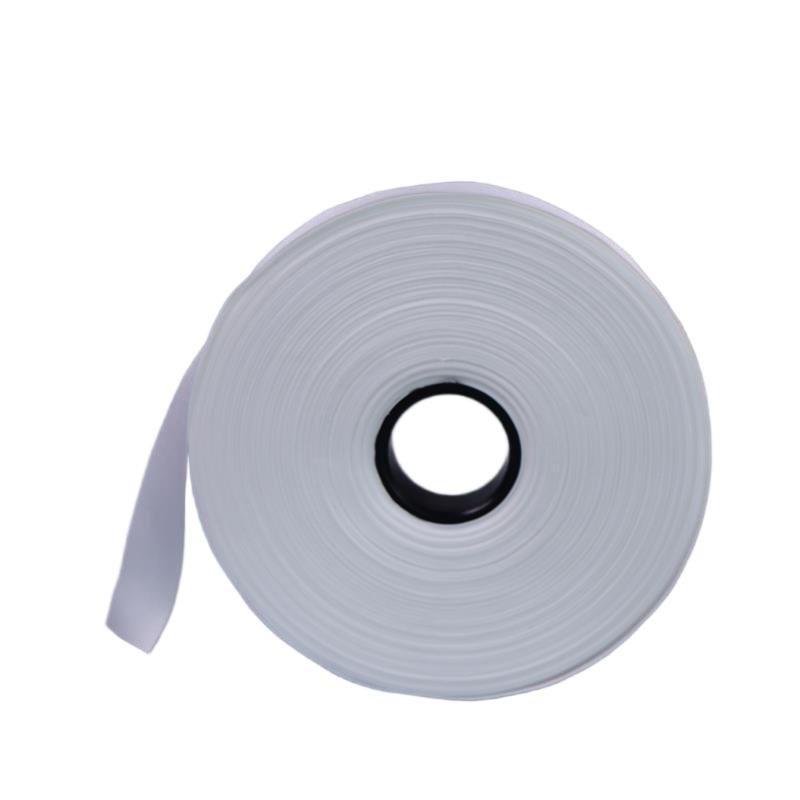

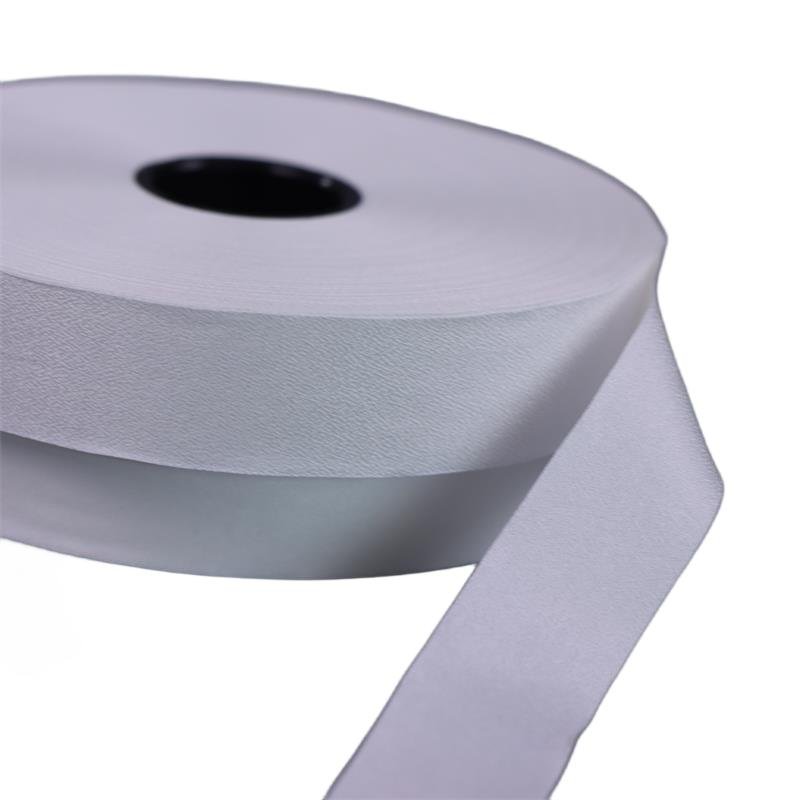

Cleanroom Roll Wiper, Polyester / Nylon Knit, 165/180/195/220gsm

  • 80% Polyester / 20% Nylon microfiber
  • Double-knitted rib structure
  • Designed for automated cleaning of LCD panels, touchscreens, optics, electronics, and SMT production lines.
  • Conformable knitted structure for improved surface contact
  • Available in 165, 180, and 200 gsm
  • Customizable core ID, Core Length, and Roll Width
  • Available with PVC or paper cores
SKU 1101010025 Categories , , ,

Knitted Cleanroom Roll Wiper, Polyester / Nylon

Constructed from 80% polyester / 20% nylon microfiber in a double-knitted rib structure, this cleanroom roll wiper combines low elasticity, good tensile strength, and dimensional stability for reliable automated cleaning. Its slightly conformable knitted structure follows the surface being cleaned, helping efficiently remove micro-dust and foreign particles while minimizing the risk of scratching sensitive surfaces. Available in 165, 180, and 200 gsm, it is designed for Roll-to-Roll cleaning and other automated contact cleaning processes.

Applications

Designed for automated contact cleaning processes where consistent wiping performance, surface conformity, and scratch protection are required.

  • Roll-to-Roll cleaning of LCD panels
  • Touchscreen and display panel cleaning
  • Optical film cleaning
  • FPD production lines
  • Removal of micro-dust and foreign particles before lamination, coating, or inspection
  • Automated cleaning of sensitive surfaces
  • SMT online cleaning
  • PCB and FPC surface cleaning before solder paste printing or component placement

Contact us for TDS, test reports, and certifications.

Weight 165 / 180 / 195 / 220 / 230 gsm
Material Polyester /Nylon
Texture Knit
Core Material PVC / Paper
Core ID/OD Customizable
Roll Width Customizable
Roll Length Customizable
Edge Sealing Ultrasonic / Thermal
Packaging Vacuum Packaging,1 Roll/Bag
Cleanroom Grade Class 100 / ISO Class 5
  • Buy More, Save More! FREE SAMPLE!
  • Contact us for volume discount information and Customized Products.
  • Delivery (Days)  ~5-20 days
Weight Material Pattern Core ID Roll Width Roll Length
165 gsm Polyester /Nylon Rib Knit 76 mm 76 mm 50 m
180 gsm Polyester /Nylon Rib Knit 10–76.5 mm 15–350 mm 10–65 m
195 gsm Polyester /Nylon Rib Knit 20–50 mm 18–248 mm 10–50 m
220 gsm Polyester /Nylon Rib Knit 20–76 mm 14–220 mm 50–75 m
180 gsm Polyester /Nylon Rib Knit 25.4–34 mm 8.5–20 mm 15–30 m
230 gsm Polyester /Nylon Rib Knit 27 mm 40 mm 20 m
Customizable Customizable Customizable

Ask for Quote and Sample!
